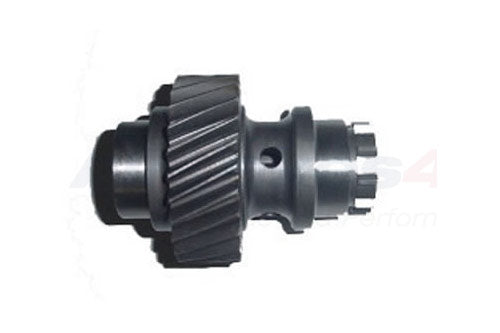

FTC5089 GEAR - MAINSHAFT - TRANSFER BOX - 26 TEETH - 1.4 - 1.26 - D1
26 TOOTH LATE MAINSHAFT (INPUT TO TRANSFER BOX) 1:4 DEFENDER TRANSFER GEAR SET
NTO & UTO MAY HAVE BEARING INCLUDED (TAKE OFF UNITS ARE FROM NEW OR USED TRANSMISSIONS BEING FITTED WITH ROAMER OVERDRIVE KIT)
NOTE THERE ARE TWO VARIANTS OF THE 26TOOTH GEAR - FITTING VARIATIONS
26 tooth FTC5089 (130mm)
26 tooth FTC4962 (135mm) (LESS COMMON)
Both of the input gears are compatible with all gearsets with the exception of 1.21 and 0.9 ratios. The fundamental difference between these two gears is the over all length FTC5089 being 130mm and FTC4962 being 135mm (see picture)
These can also be identified by the thickness of the PTO plate.
16mm requires FTC4962
11mm requires FTC5089
