Vision X - XPR LED Light Bar

  • Sale
  • Regular price $299.99


Harnessing Unbeatable Distance


The XPR Light bar series provides a powerful distance light bar option, that has distance comparable to HID with all the benefits of LED. The XPR combines powerful 10 watt LEDs with IRIS reflector technology to outshine and outlast.
Dual Mounting Options

With dual mounting options of both end-cap mounting and patented mounting feet, this affordable light bar is the ultimate solution for your truck, Jeep, or ATV.
Prime Drive Technology

Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your LED Light Bar. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximize the lifespan.

FEATURES

Type : 10-Watt

  • 12″ – 51″ Lengths Available
  • Long Distance Projection
  • Up to 29,133 Raw Lumens

SPECIFICATIONS

ITEM # PART # BEAM LENGTH # OF LEDs RAW LUMENS EFFECTIVE LUMENS WEIGHT INPUT VOLTS WATTS AMP DRAW

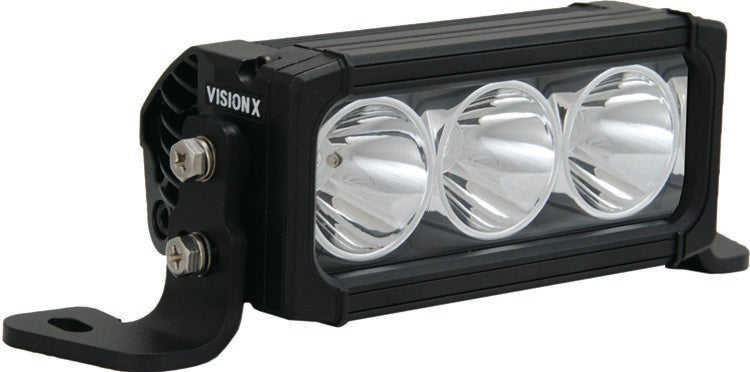

XPR-3 9891606 Straight 6″ 3 3,237 lm 2,216 lm 1.55 lb 11-32V 30 2.5A

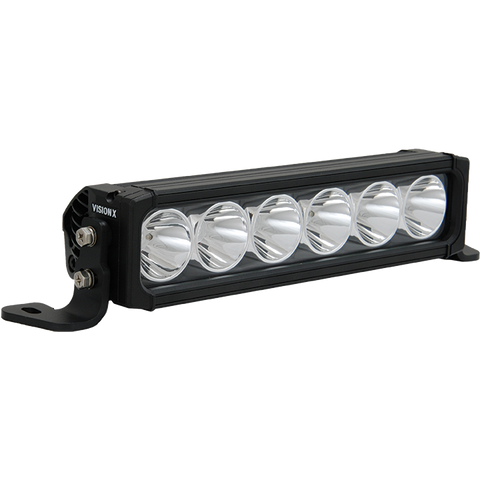

XPR-6 9891613 Straight 11.50″ 6 6,474 lm 4,431 lm 2.84 lb 11-32V 60 5.0A

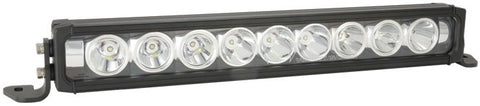

XPR-9M 9891620 Mixed 19.00″ 9 9,711 lm 6,648 lm 4.65 lb 11-32V 90 7.5A
XPR-12M 9891637 Tilted LEDs 24.00″ 12 12,948 lm 9,064 lm 5.24 lb 11-32V 120 10.0A

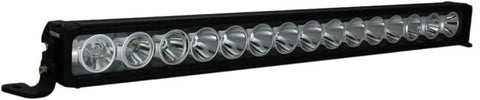

XPR-15M 9891644 Tilted LEDs 29.40″ 15 16,185 lm 11,330 lm 6.05 lb 11-32V 150 12.5A

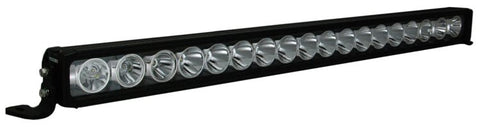

XPR-18M 9891651 Tilted LEDs 34.70″ 18 19,422 lm 13,595 lm 7.67 lb 11-32V 180 15.0A

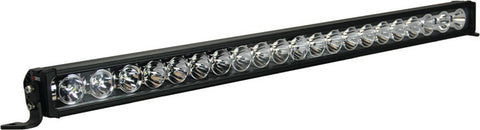

XPR-21M 9891668 Tilted LEDs 40.00″ 21 22,659 lm 15,861 lm 9.01 lb 11-32V 210 17.5A

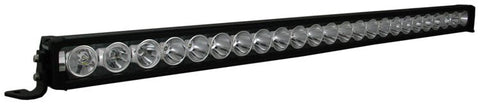

XPR-24M 9891675 Tilted LEDs 45.30″ 24 25,896 lm 18,127 lm 9.67 lb 11-32V 240 20.0A
XPR-27M 9891682 Tilted LEDs 50.60″ 27 29,133 lm 20,393 lm 10.90 lb 11-32V 270 22.5A
